 Modern manufacturing advances have led to a proliferation of optics that depart from pure spherical shape. An aspheric lens has more complex surface shapes which can reduce or eliminate spherical aberration, as well as reducing other aberrations such as astigmatism. An asphere can replace multiple elements, allowing a manufacturer to reduce the complexity, cost, weight and size of an optical assembly.

 The challenges of measuring aspherical elements, however,  can be a significant tradeoff. Where standard flats and spheres can be compared to a similar but higher quality reference, aspheres require much more sophisticated analysis to ensure performance. Mild departures can be measured interferometrically, thouhgh steeper slopes require increased resolution to image. For larger departures a computer generated holographic (CGH) null corrector is introduced into the test path, which can change a spherical wavefront to match the aspheric surface, thereby
allowing measurement with an interferometer.

 The Accufiz 6MP high resolution Fizeau has the highest slope acceptance of any interferometer on the market. It can handle mild aspheric departure, enabling simpler test setups for aspheres.

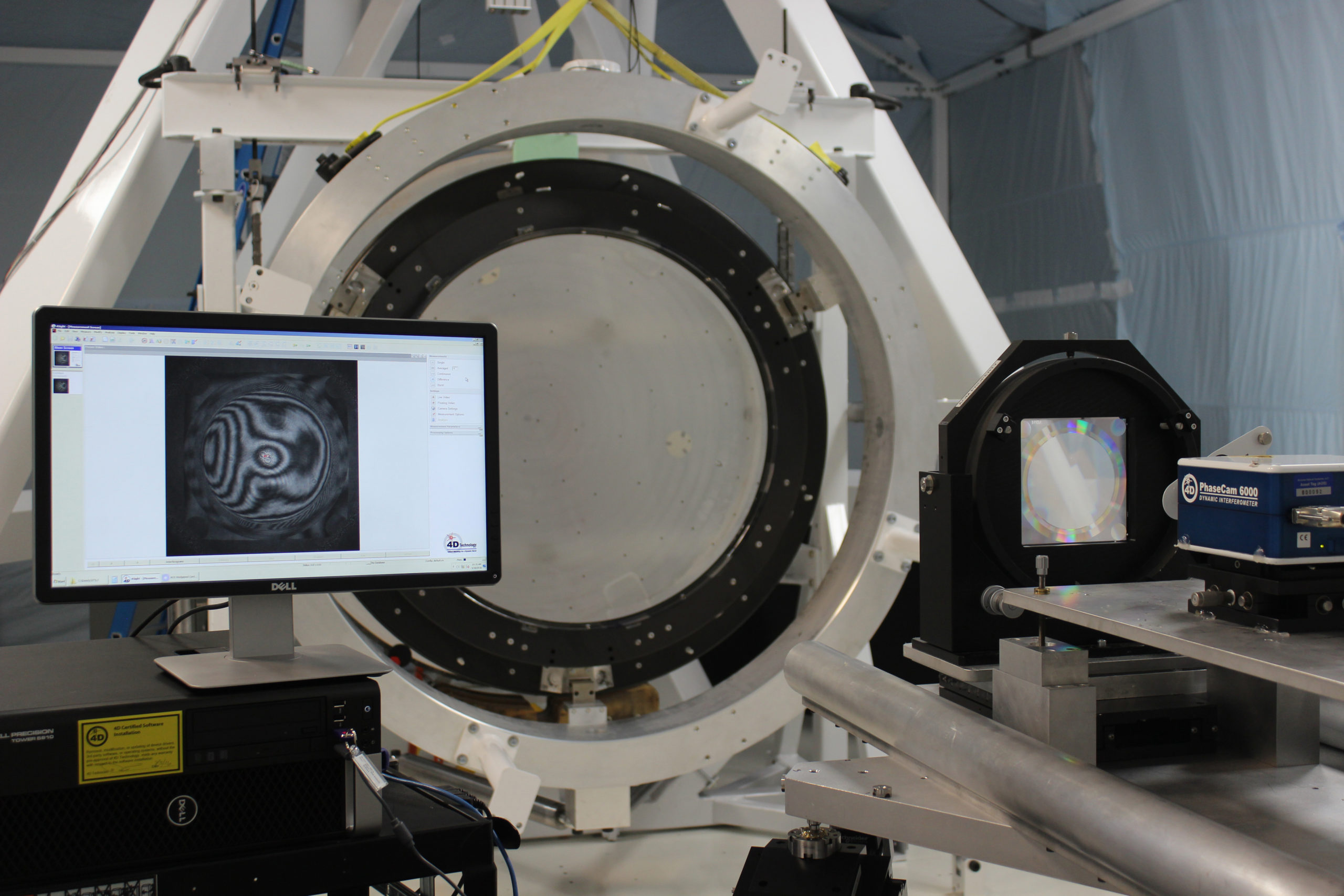

When a CGH is required, PhaseCam Twyman-Green interferometers provide rapid, non-scanning, whole-field measurement. CGH’s are employed for measurement of optics for many of the premiere optical projects currently in process, including NASA’s James Webb Space Telescope.



Products for Aspheric Optics

AccuFiz 6 MPx

The high resolution 6 megapixel AccuFiz Fizeau interferometer can measure steeper slopes, making it your best suited option for working with aspheres.

PhaseCam

4D PhaseCam Twyman-Green interferometers are the industry choice for measuring concave spherical optics, from several millimeters to tens of meters in diameter.
