Aviation and Automotive

Turbines

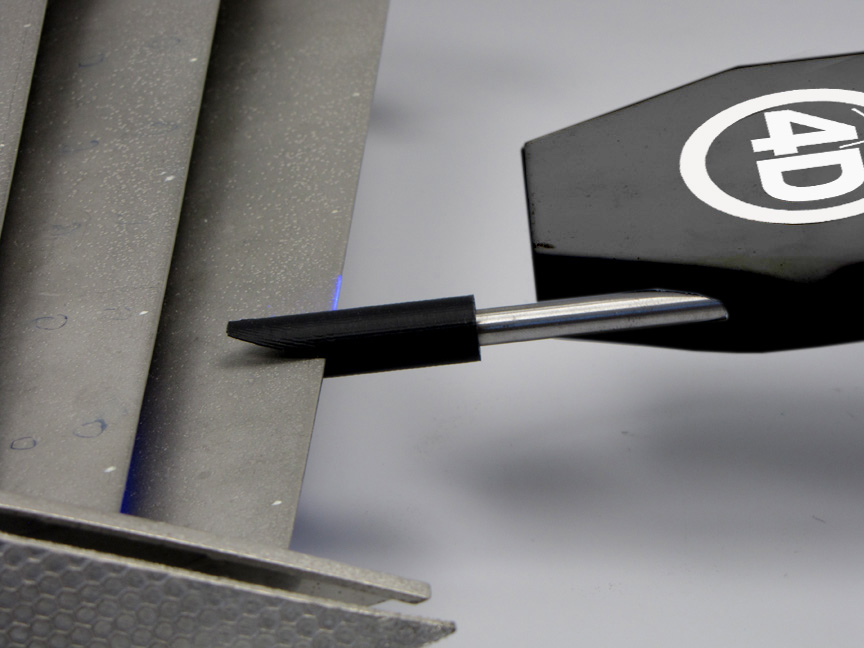

Accurate measurement of surface defects on turbine blades, fir-tree roots and other structures is critical to long component life and safe operation. The 4D InSpec can instantly measure features and defects from 0.1–100 mils deep on parts with challenging geometries.

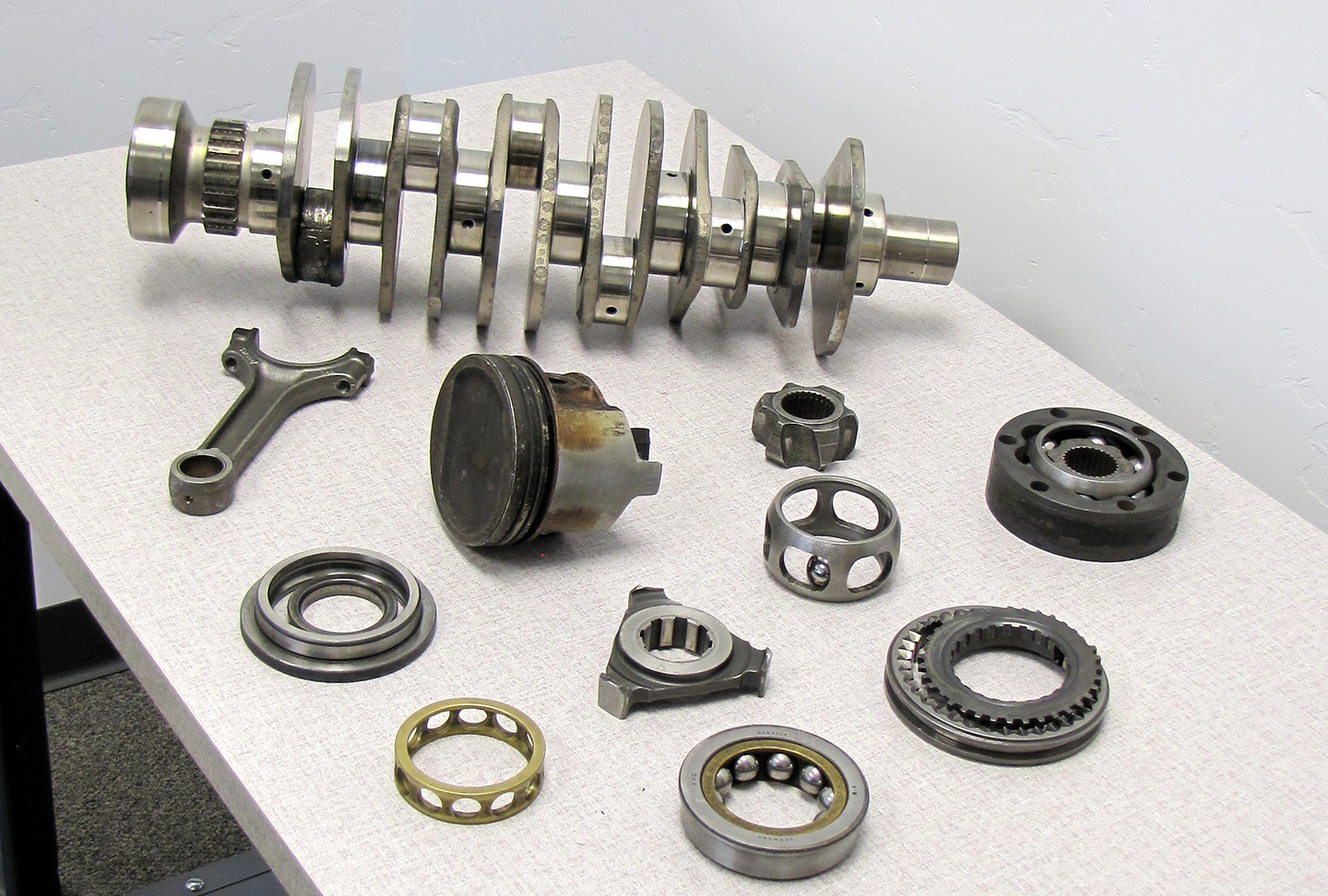

Drive Train Components

The 4D InSpec brings high resolution measurement to the factory floor, making it possible to locate and measure pitting, scratches and other defects, as well as measuring dot peening, laser scribe marks, edge break and other features. 4D InSpec is more accurate than optical comparators, helping to correctly identify parts that do not meet surface texture specifications, while eliminating the waste of scrapping or reworking components that actually pass all requirements.

The 4D InSpec also excels at quantifying wear and corrosion on components during rebuilds, letting you measure with micrometer-level resolution in even the toughest environments.

Added Technical Resources

Measurement of Space Optics and Structures

This paper presents an overview of the techniques and configurations used to build dynamic interferometers and measurement results for a variety of space-based optical components.

Vibrational Characteristics of Light-weight Mirrors

We present a technique to characterize and quantitatively measure the vibrational mode shapes and amplitudes of mirrors concurrently with surface figure testing..

Products for Aviation and Automotive

4D InSpec

4D InSpec provides non-contact measurement of surface features and defects, on the factory floor, in machine shops and in field service applications.

Do you need custom-built metrology?

Get a free consultation. 4D Technology’s mechanical, optical, electrical and software engineering teams are standing by to evaluate what it would take to meet your application’s requirements.
