What is a Fizeau Interferometer?

A Fizeau interferometer is a laser interferometer configuration commonly used for measuring the surface shape and transmission quality of optics and optical-grade surfaces.

In a Fizeau laser interferometer,  a beam splitter divides the beam from a laser source. The “reference beam” is directed to a high-quality surface. The “test beam” is directed to the test surface, or through a test optic to a high-quality return mirror.

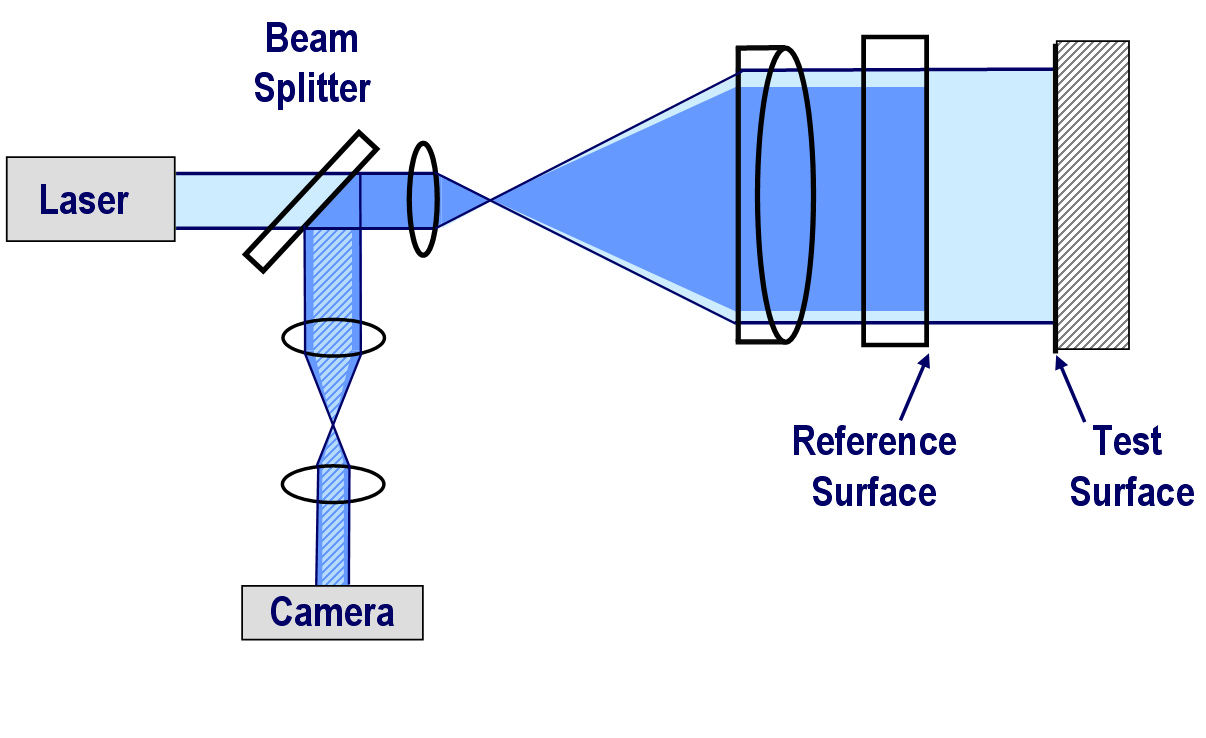

Fizeau Interferometer (Fizeau Laser Interferometer) Diagram - 4D Technology

Learn about 4D Technology Fizeau Interferometers

Fizeau Interferometers Measure Surface Heights or Transmitted Wavefront Error

When the two reflected beams pass back through the beam splitter, they recombine at the sensor (camera). When recombined, the beams form an interference pattern. This pattern is due to changes in phase caused by the differences between the test and “perfect” reference surfaces.  The sensor records this interference pattern as a single measurement frame.

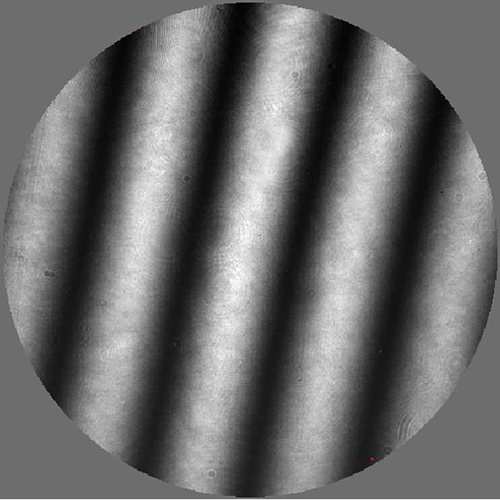

Fizeau Interferometer Interference Fringes - 4D Technology

By combining several frames of data, one can measure the heights of all points on the test surface, or quantify the change in wavefront caused by the beam passing through the optic. There are several ways to acquire multiple frames.

Temporal Phase Shifting Fizeau Interferometer

In a “phase-shifting” Fizeau interferometer, the reference is moved in precise increments relative to the test surface. These increments are fractions of the source wavelength, or tens to hundreds of nanometers.  The instrument acquires a frame of data after each incremental move. The complete sequence of measurement frames is then used to calculate surface height or wavefront error.

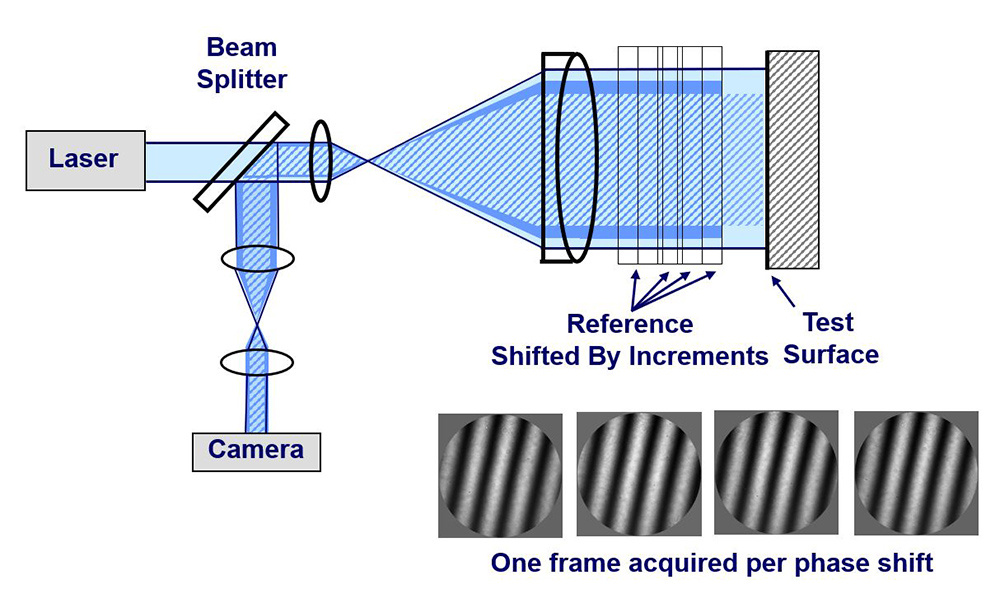

Phase Shifting Fizeau Interferometer - 4D Technology

Phase-Shifting Interferometers Are Limited by Vibration and Turbulence

The challenge with phase-shifting interferometers is that time elapses during the acquisition of the measurement data. While the time is brief (hundreds or thousands of milliseconds) it is long enough that vibration and air turbulence can degrade or destroy the measurement.

To overcome the environment, temporal phase-shifting systems must be isolated from vibration and turbulence. Typically, this is accomplished by moving the systems from the production floor into a dedicated metrology lab, and by using heavy vibration isolation tables. Such measures can be expensive and require valuable production space.

A Dynamic Fizeau Interferometer Overcomes Vibration and Turbulence

In a dynamic Fizeau interferometer all phase shifting is accomplished spatially, rather than over time. An element introduced before the camera separates the data into four phases which can be imaged simultaneously by the sensor. Extremely short acquisition time means that vibration and turbulence are effectively frozen, producing excellent measurements  despite vibration or turbulence.

4D Technology pioneered the deveopment of Dynamic Interferometry®. In 4D dynamic Fizeau interferometers,  a micropolarizer sensor array spatially encodes the captured image with four phase shifts of 0, 90, 180, and 270 degrees—enabling single frame, quantitative phase measurement.

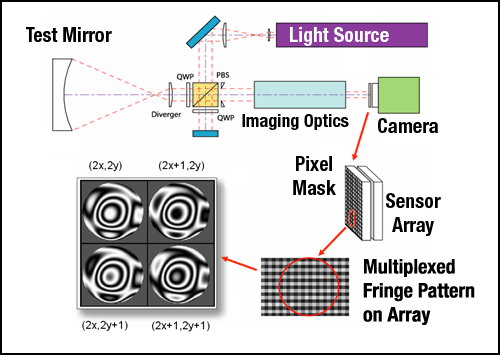

A dynamic Fizeau interferometer uses the polarization of light to split the measurement beam into four phases to measure simultaneously - 4D Technology

Dynamic Fizeau Interferometers Measure In Challenging Environments

Dynamic Fizeau interferometers measure in noisy environments without vibration isolation. In fact, a dynamic Fizeau interferometer will measure more accurately if vibration is present and several data frames are averaged.

Because they can operate without isolation, vibration-immune Fizeau instruments measure effectively in production floor environments. They serve in cleanrooms where noisy pumps and air handlers make temporal phase-shifting measurements challenging. Dynamic systems can even be used inside pressure chambers to measure space-bound optics during cryo-vacuum testing that simulates conditions in space.

A dynamic Fizeau interferometer uses the polarization of light to split the measurement beam into four phases and measure simultaneously - 4D Technology

4D Technology’s Range of Fizeau Laser Interferometers

Fizeau interferometers from 4D Technology have continually led the industry for high performance and innovation.  We pioneered the development of dynamic interferometry; led the field with high resolution metrology for measuring steep slopes and aspheres; developed short coherence source models for measuring plane-parallel optics; and produced a vast array of Fizeau mounts and accessories.

With available wavelengths from 193 nm through 10.6 microns, apertures from 33 mm to 800 mm, and industry-leading analysis software, 4D Fizeau interferometers beat all other systems for value, flexibility and long-term investment value.

4D Fizeau Laser Interferometer Products

FIzeau Interferometer - AccuFiz Fizeau Interferometer, 4D Technologyy

AccuFiz Fizeau Laser Interferometers

Flexible, proven and affordable, AccuFiz Fizeau laser interferometers fit well in confined lab spaces and offer high stability in any environment. In wavelengths from 355 nm through 1.064 µm and apertures from 33 mm to 800 mm, AccuFiz systems are available for a vast range of applications.

Fizeau Interferometer - FizCam Dynamic Fizeau Interferometer

FizCam Short-Coherence Fizeau Interferometers

Measures both sides of transparent, parallel optics as thin as 200 microns, surfaces in multi-surface optical systems, remote cavity test setups, and solid cavities such as etalons (laser rods).
