Fizeau Options & Accessories

A comprehensive line of optics, mounts and options for our AccuFiz Fizeau Interferometers. Many are suitable for your third party interferometer as well.

Fizeau interferometers provide high quality wave front measurements of general purpose and meter-class optics. Measurement quality, however, can be compromised by inferior mounting components and ad hoc mounting configurations.

4D Technology’s optical mounting components make setup fast and repeatable, improving both productivity and measurement quality. Rigid and vibration-resistant, these easy-to-use mounts interface with most manufacturers’ optics to maximize investment value. Mounts are available in 4-inch and 6-inch versions to accommodate most Fizeau interferometers, including 4D AccuFiz interferometers.



Optical Mounts

4D optical mount components for laser interferometers reduce setup time and improve both productivity and measurement quality. Rigid and vibration-resistant, these easy-to-use mounts interface with most manufacturers’ optics. Available in both 4-inch and 6-inch versions to accommodate most Fizeau laser interferometers, including 4D AccuFiz Compact Fizeau Interferometers and FizCam Dynamic Interferometers. See Configuration Guide below.

Optics

4D offers a range of bayonet mount, 4- and 6-inch optics to complete your test setup. Choose from λ/10 or λ/20 quality transmission flats and return flats, or λ/10, λ/15 or λ/20 transmission spheres and reference spheres, from F/0.65 through F/12.5. Various reflectivities and attenuation coatings are offered. Larger optics up to 18 inches are also available.

Digital Radius Slides

4D’s family of Digital Radius Slides for AccuFiz Fizeau Laser Interferometers provide axial positioning resolution down to 10nm. Vertical and horizontal slides function in conjunction with 4D Technology’s 4Sight Analysis Software for easy, extremely accurate Radius of Curvature measurement for concave or convex optics.

Radial slides are available in horizontal or vertical orientation.

Motorized Tip/Tilt

The motorized tip/tilt accessory for AccuFiz Laser Interferometers lets you remotely align the reference optic, for precise system alignment, easy positioning in hard-to-reach locations, and automated calibration of dynamic measurement mode. Both 4″ (100 mm) and 6″ (150 mm) models available.

Optic

Mounts & Optics

Optical Mounts

4D optical mount components for laser interferometers reduce setup time and improve both productivity and measurement quality. Rigid and vibration-resistant, these easy-to-use mounts interface with most manufacturers’ optics. Available in both 4-inch and 6-inch versions to accommodate most Fizeau laser interferometers, including 4D AccuFiz Compact Fizeau Interferometers. See Configuration Guide below.

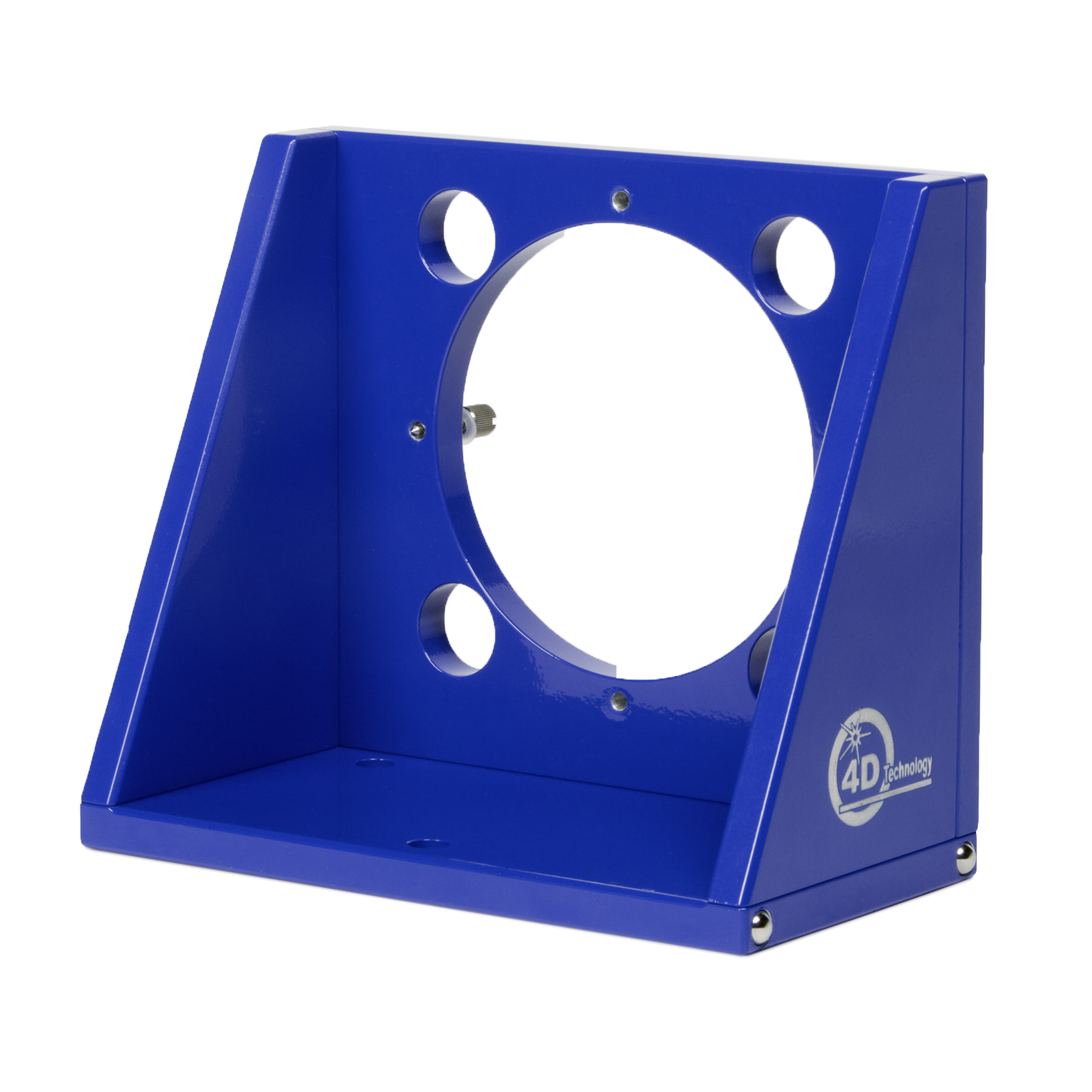

Fixed Base

This rugged, stable base is the heart of the 4D optical mount system for laser interferometer measurements. Captive screws enable quick attachment of additional components. Steel ball guides enable the mount to be accurately translated along the optical axis with the available Table Guide.

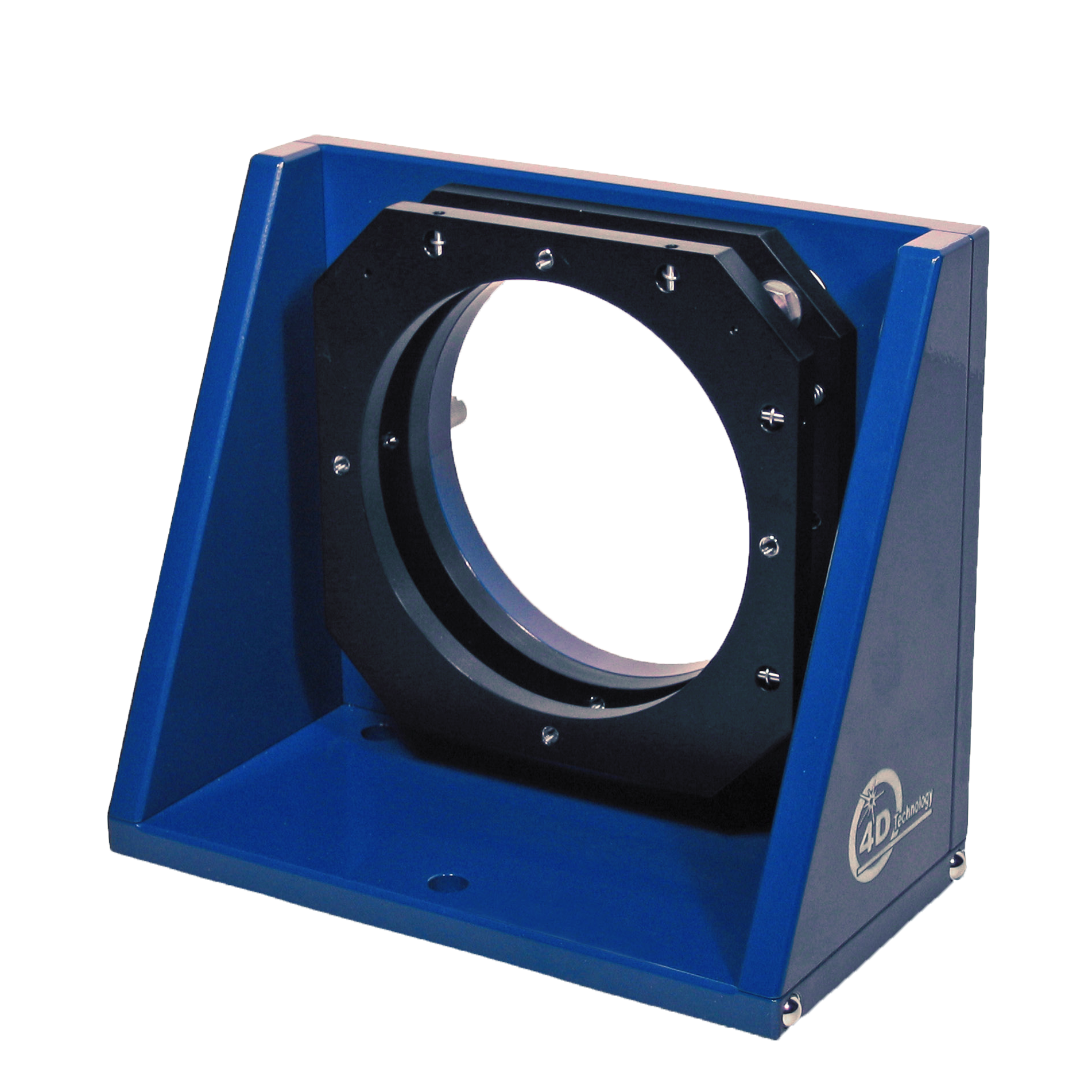

2-Axis Base

This mount combines the Fixed Base with a tip-tilt stage to accurately align optics for laser interferometer measurements. It is available in both 4-inch and 6-inch configurations. The 4-inch version provides ± 4 degrees tip/tilt, while the 6-inch version provides ± 3.5 degrees tip/tilt. Steel ball guides enable the mount to be accurately translated along the optical axis with the available Table Guide.

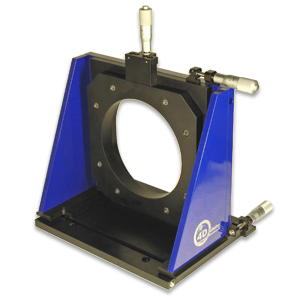

3-Axis Base

The XYZ stage enables precision translation in the X, Y and Z axes for laser interferometer measurements. Micrometers offer precise, drift-free positioning with negligible backlash. Steel ball guides enable the mount to be accurately translated along the optical axis with the available Table Guide.

5-Axis Base

The 5-axis XYZ Tip-Tilt Mount enables precision translation in the X, Y and Z axes, as well as tip-tilt adjustment for laser interferometer measurements. The 4-inch version provides ± 4 degrees tip/tilt, while the 6-inch version provides ± 3.5 degrees tip/tilt. Micrometers offer precise, drift-free positioning with negligible backlash. Steel ball guides enable the mount to be accurately translated along the optical axis with the available Table Guide.

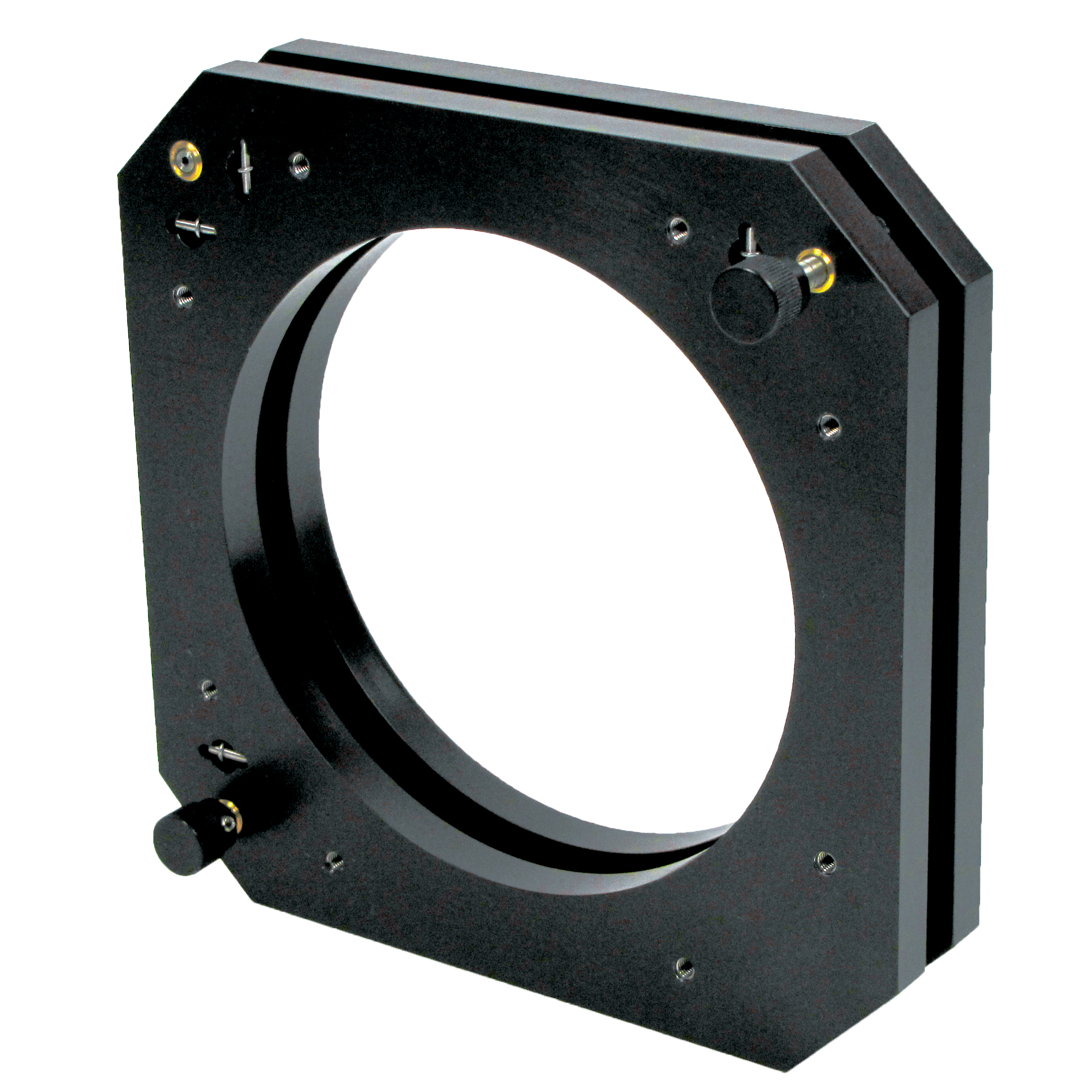

Tip-Tilt Adapter

The Tip/Tilt adapter mounts to the Fixed Base or 3-Axis Base to add tip and tilt adjustment for interferometer and laser interferometer measurements. The precision mechanism prevents drift and backlash. The 4-inch adapter provides ± 4 degrees tip/tilt, while the 6-inch adapter provides ± 3.5 degrees tip/tilt. Mounts with integral screws to the Fixed Base.

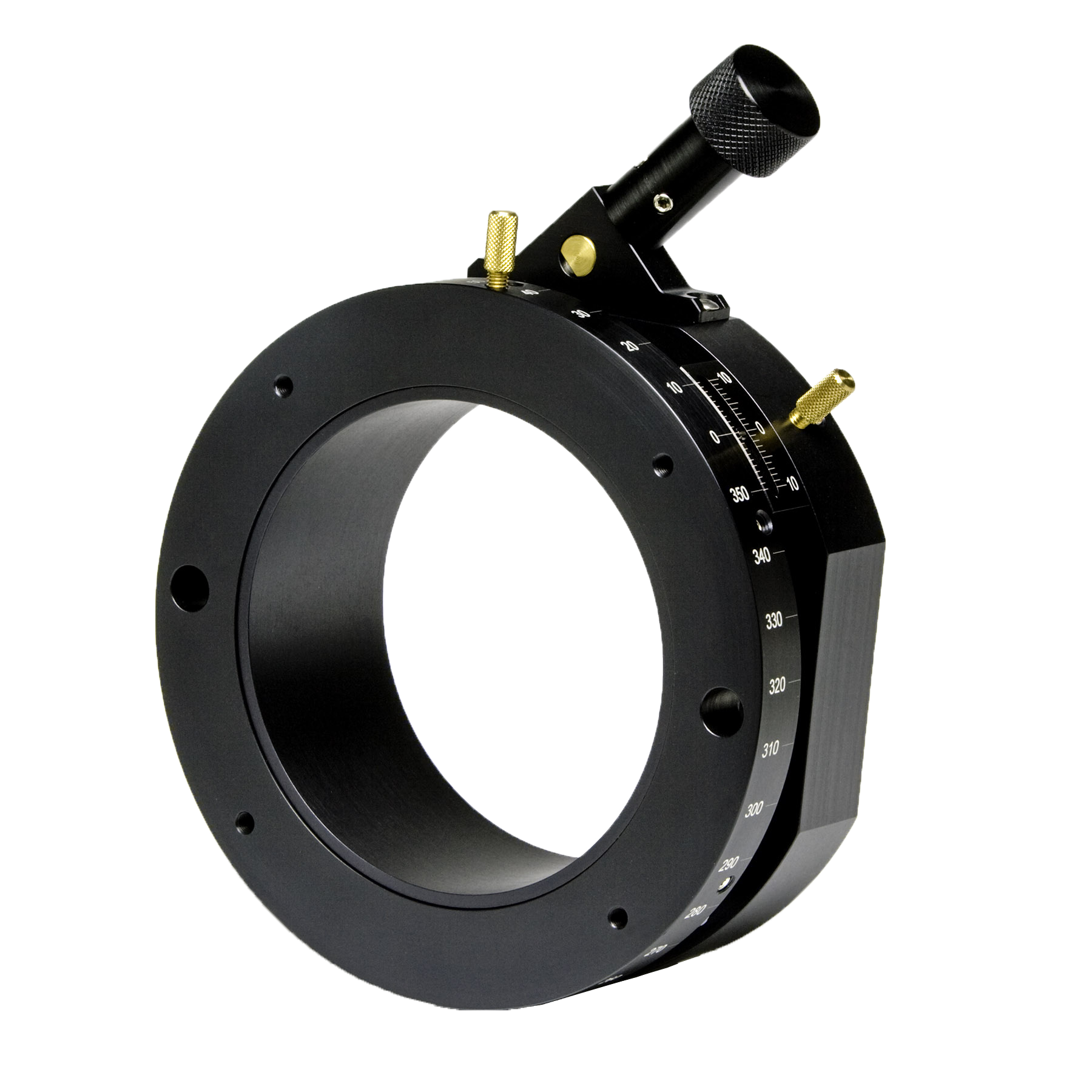

Rotation Adapter

The rotation mount adds full 360 degree rotation, with precision stops at 90 degree increments for absolute flat and sphere testing on a laser interferometer. The adapter includes ±10 degrees fine adjustment, with coarse and fine position locks. The scale is easy to read in low light.

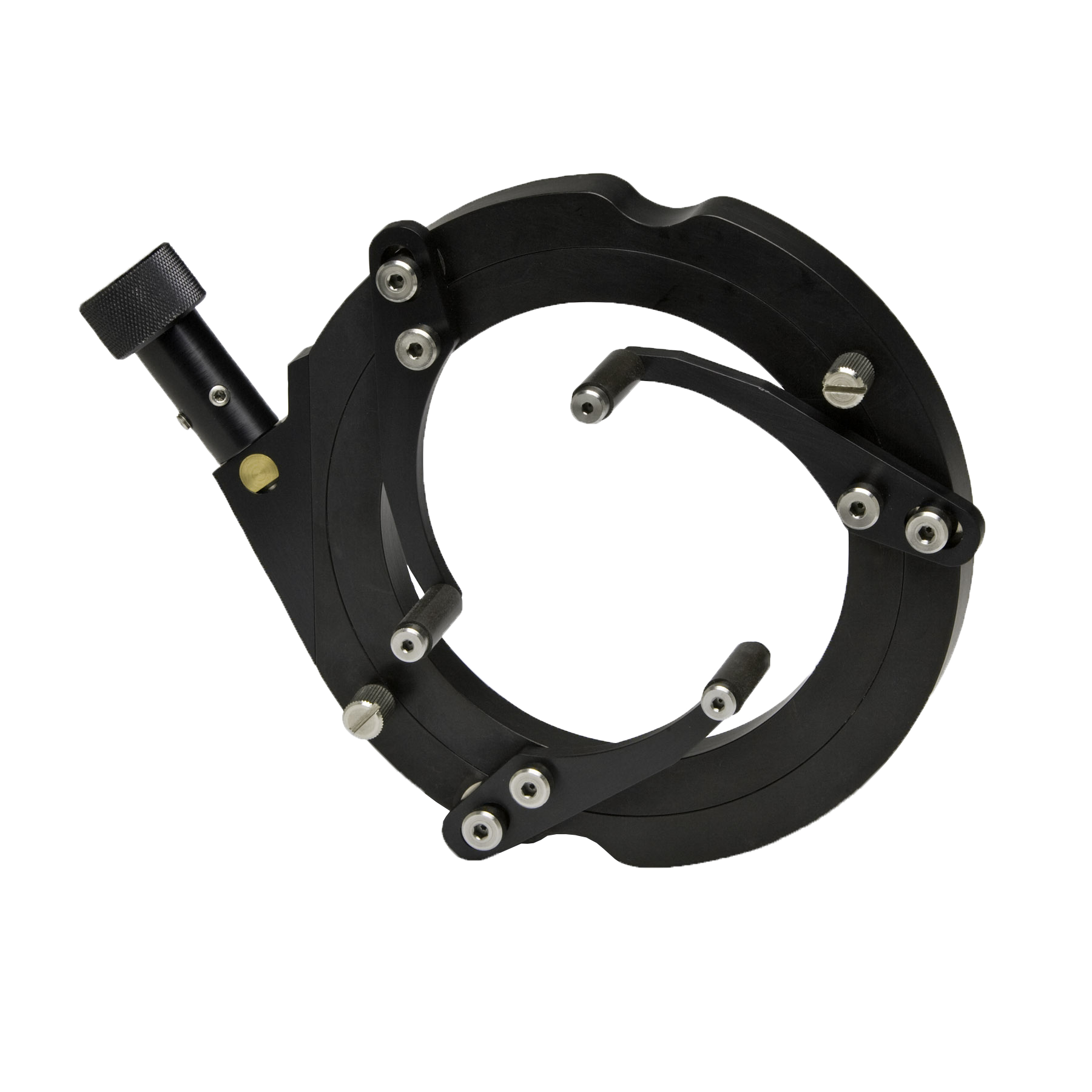

3-Jaw Mount

This self-centering 3-jaw clamp mount provides gentle grip and positive positioning for circular optics for laser interferometer measurements. Smooth, single knob adjustment grips samples from 0 inches to full diameter. Viton® jaw tips provide superior grip and resist dust and chemicals.

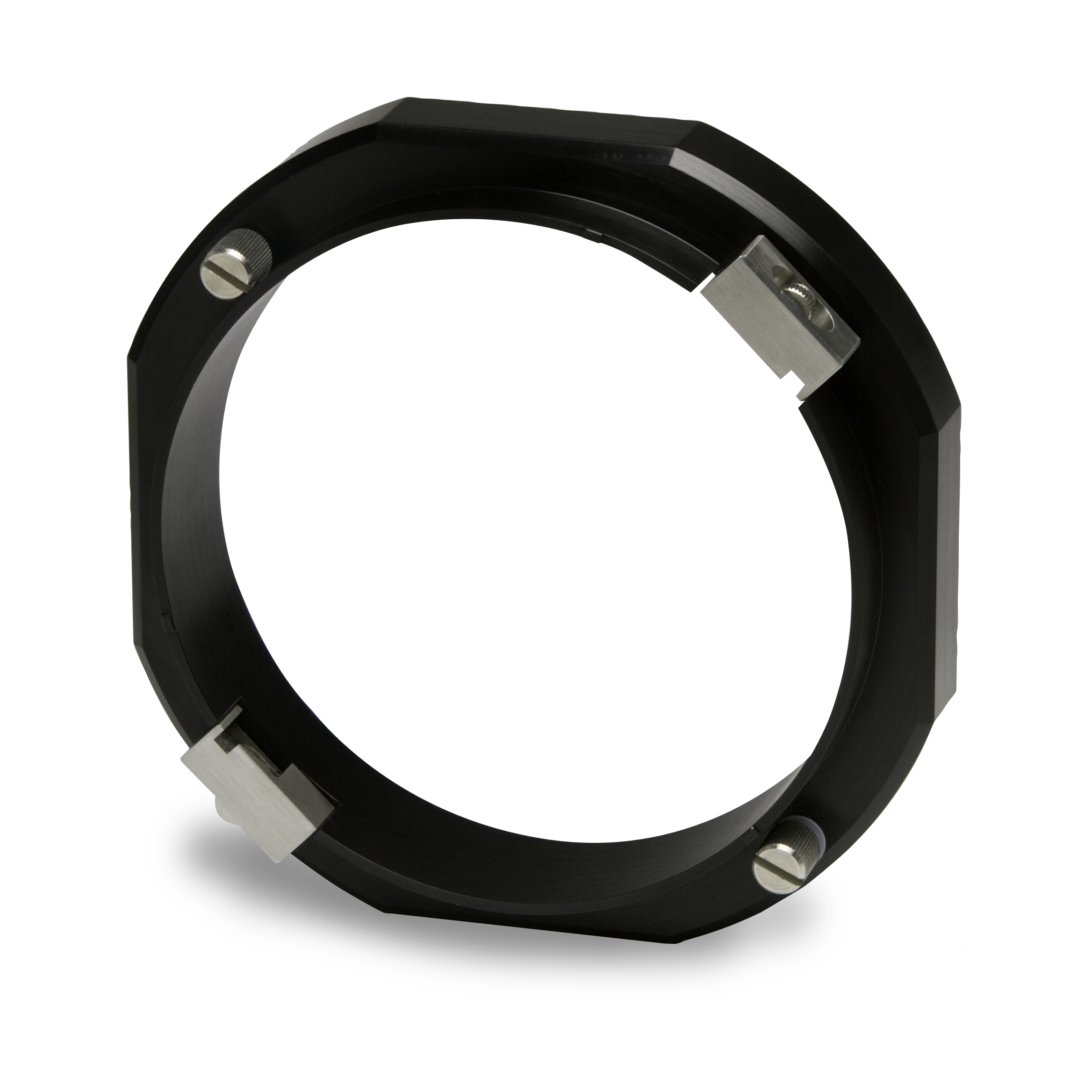

Bayonet Mount

This mount accepts industry-standard bayonet mount optics from most manufacturers, for laser interferometer measurements. Thumbwheel locks ensure positive positioning and zero drift.

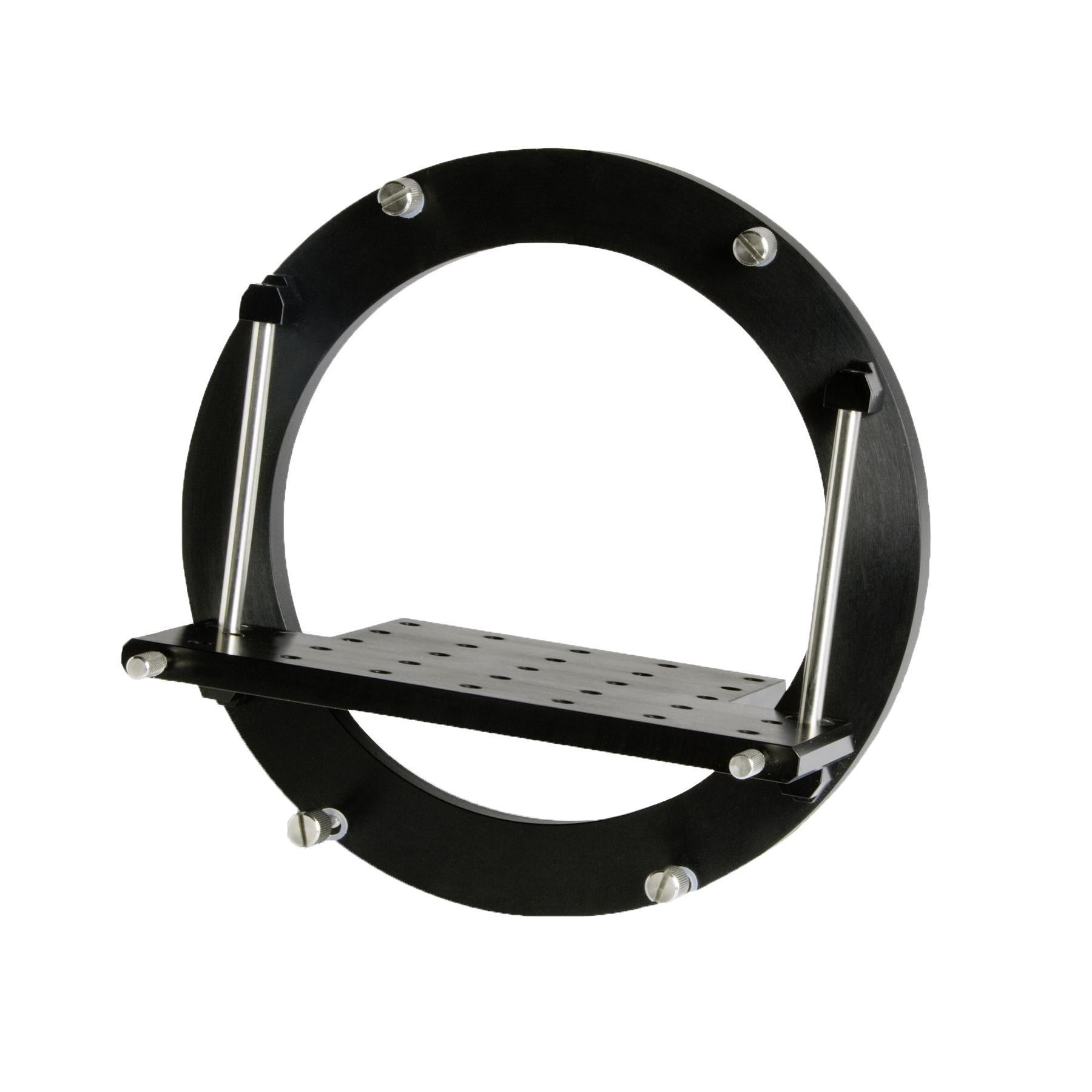

Shelf Mount

The shelf mount provides level support for laser interferometer measurement of prisms, corner cubes, etc. Locking slides allow vertical travel (the 4-inch version provides 2.75 inches travel; the 6-inch version provides 3.25 inches travel). The shelf itself includes a mounting hole array in either English (1/4-20 threaded holes on 1 inch centers) or Metric (M6 threaded holes on 25 mm centers) configurations.

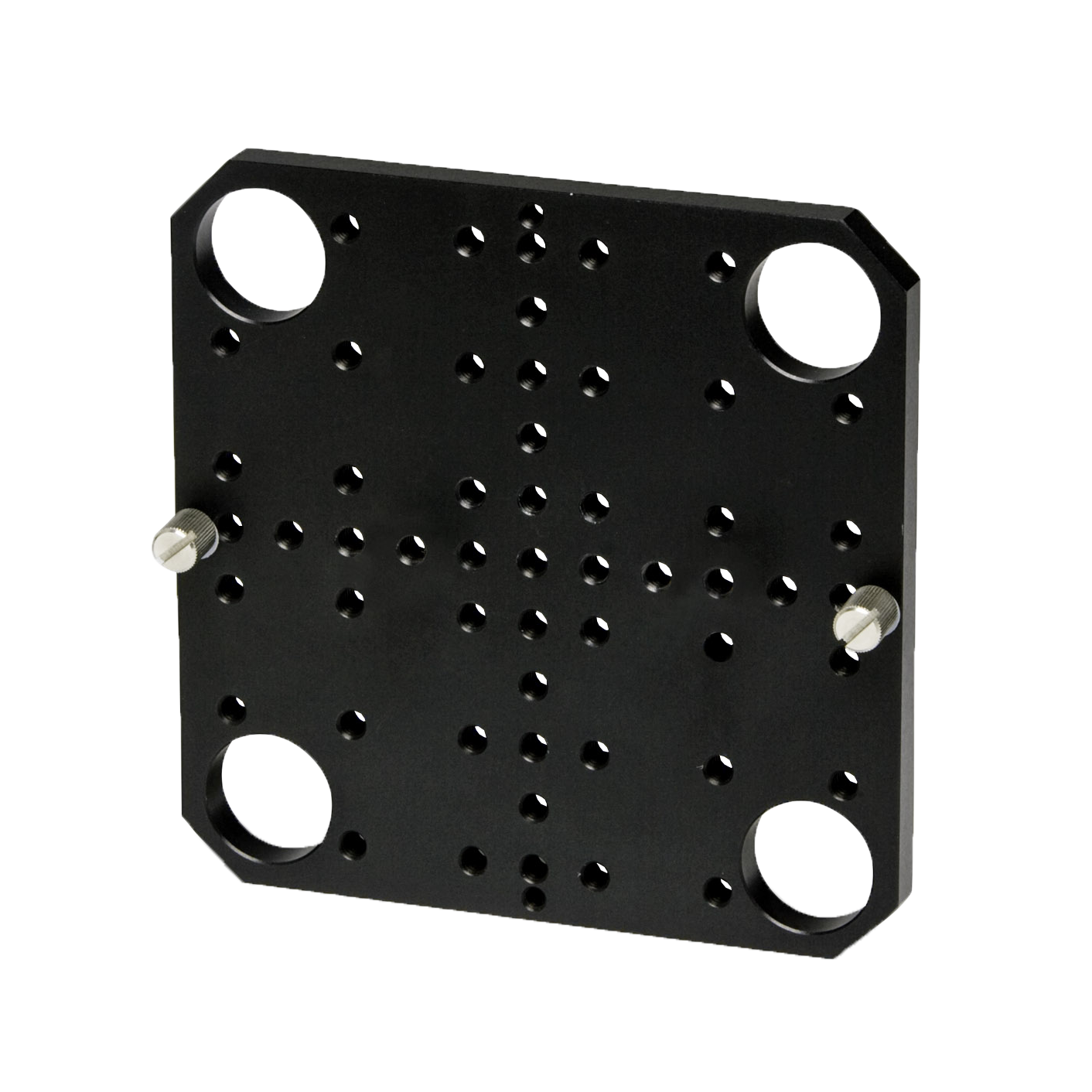

Adapter Plate

This plate enables custom optical mount configurations for laser interferometer measurements. The 4-inch adapter plate is 5.9-inches square, with 1 inch holes in its corners to accommodate the tip/tilt adapter controls. The 6-inch adapter is a solid, round plate, 8.75 inches in diameter. Both 4-inch and 6-inch adapter plates include a mounting hole array in either English (1/4-20 threaded holes on 1 inch centers) or Metric (M6 threaded holes on 25mm centers) configurations. The center row of holes along both major axes are on 1/2 inch (12 mm) centers.

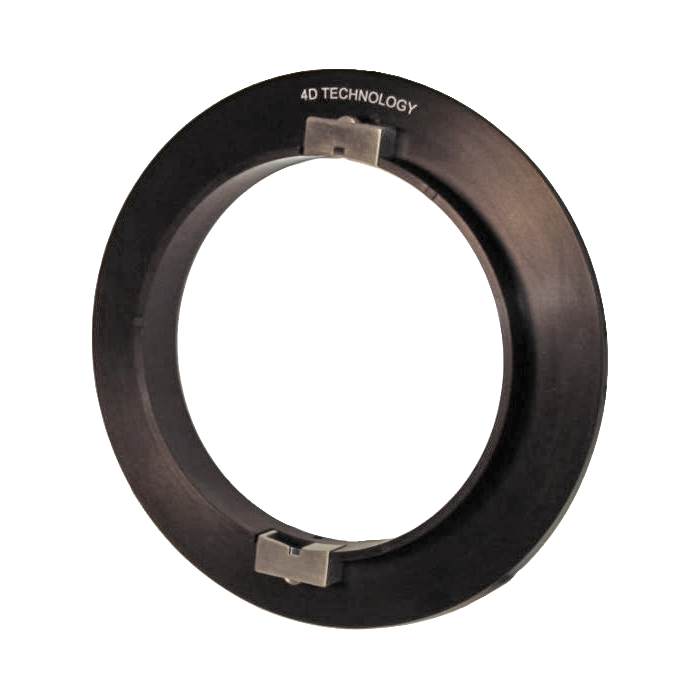

6" to 4" Bayonet Adapter

This adapter lets you use 4″ bayonet mount optics with a 6″ (150mm) aperture laser interferometer. Thumbwheel locks ensure positive positioning and zero drift.

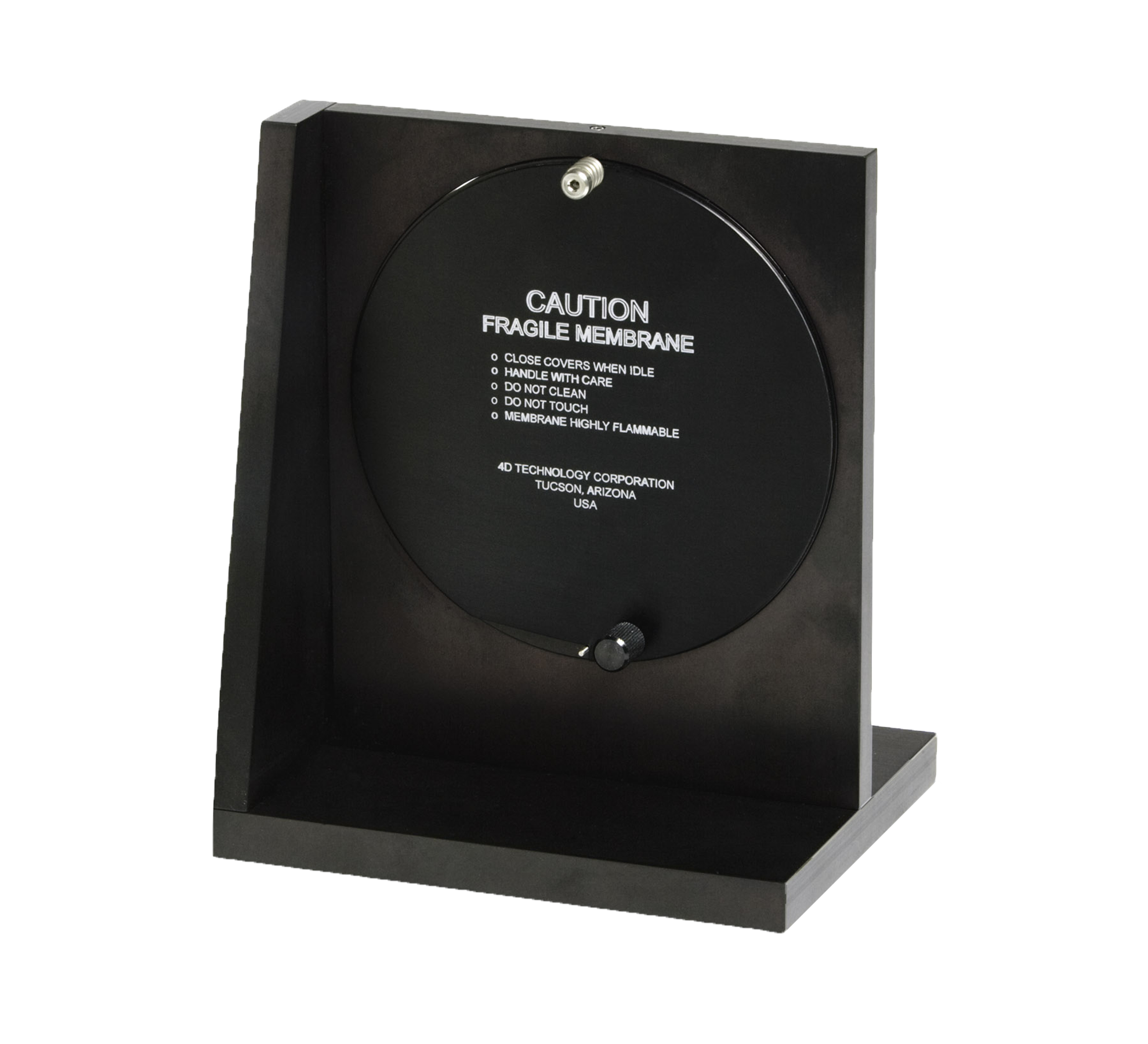

Pellicle Beamsplitter

When measuring highly reflective samples with a laser interferometer, this pellicle beamsplitter provides 25-30% transmission attenuation at 633 nm wavelength to maximize fringe contrast. Solid case and integral covers enable safe storage and transport.

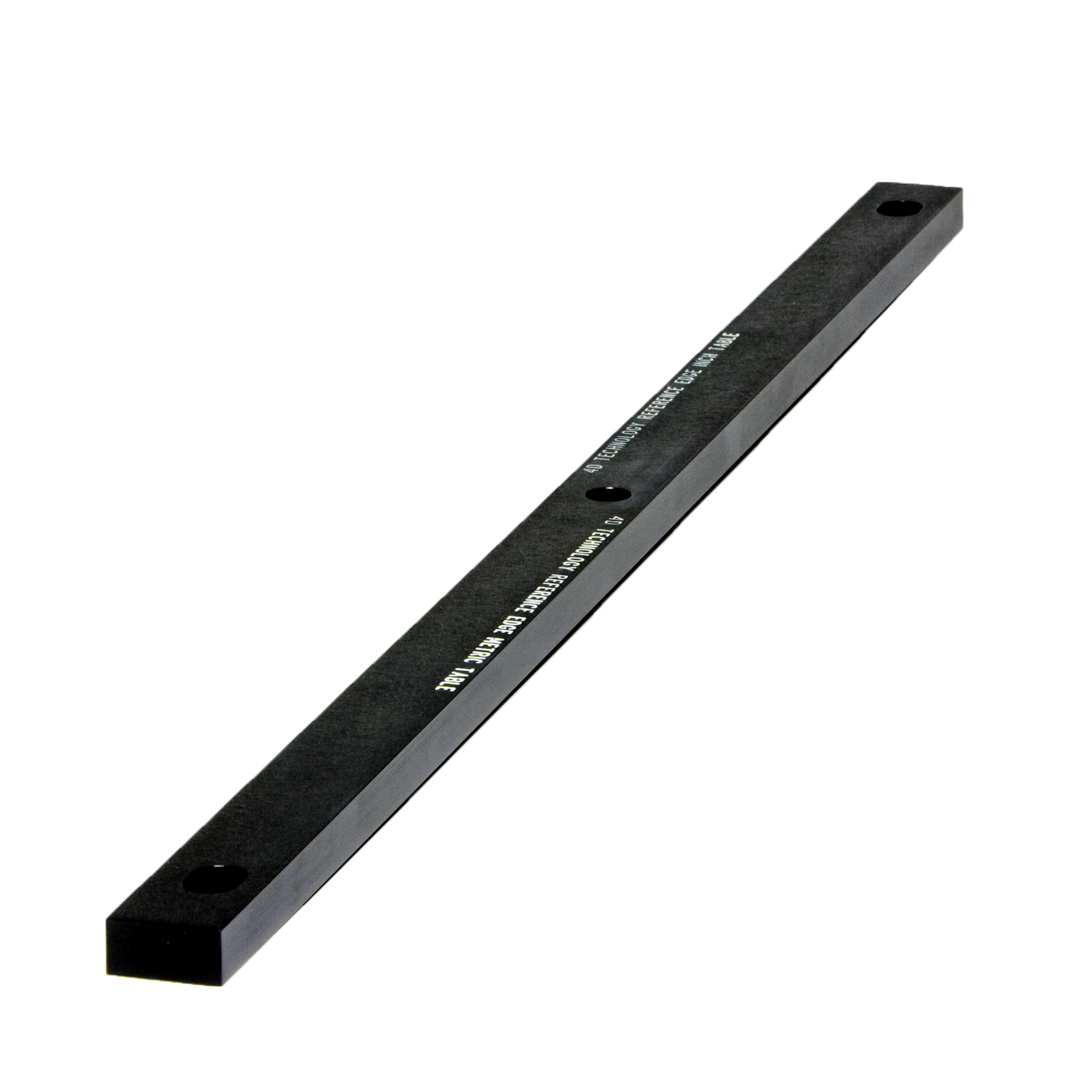

Table Guide

The table guide enables the Fixed Base, 2-axis Base, 3-axis Base or 5-axis Base to be translated precisely along the optical axis for laser interferometer measurements. Ball guides on the mounts slide along the guide for positive positioning. Mounting slots enable use on either English-scale or Metric-scale optical tables.

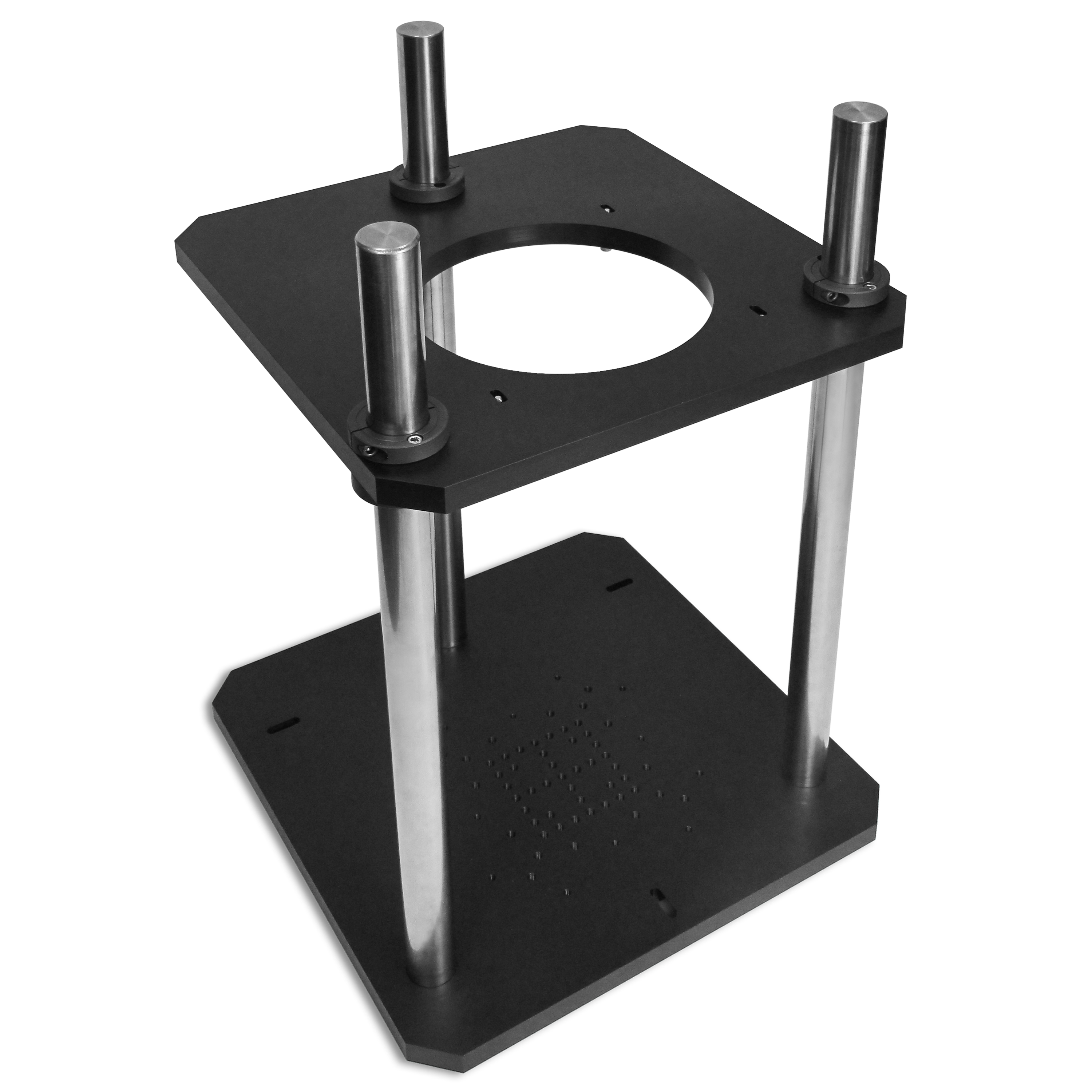

Look-Down Stand

The Look-Down stand provides vertical mounting for AccuFiz interferometers, with either 36- or 72-inch posts.

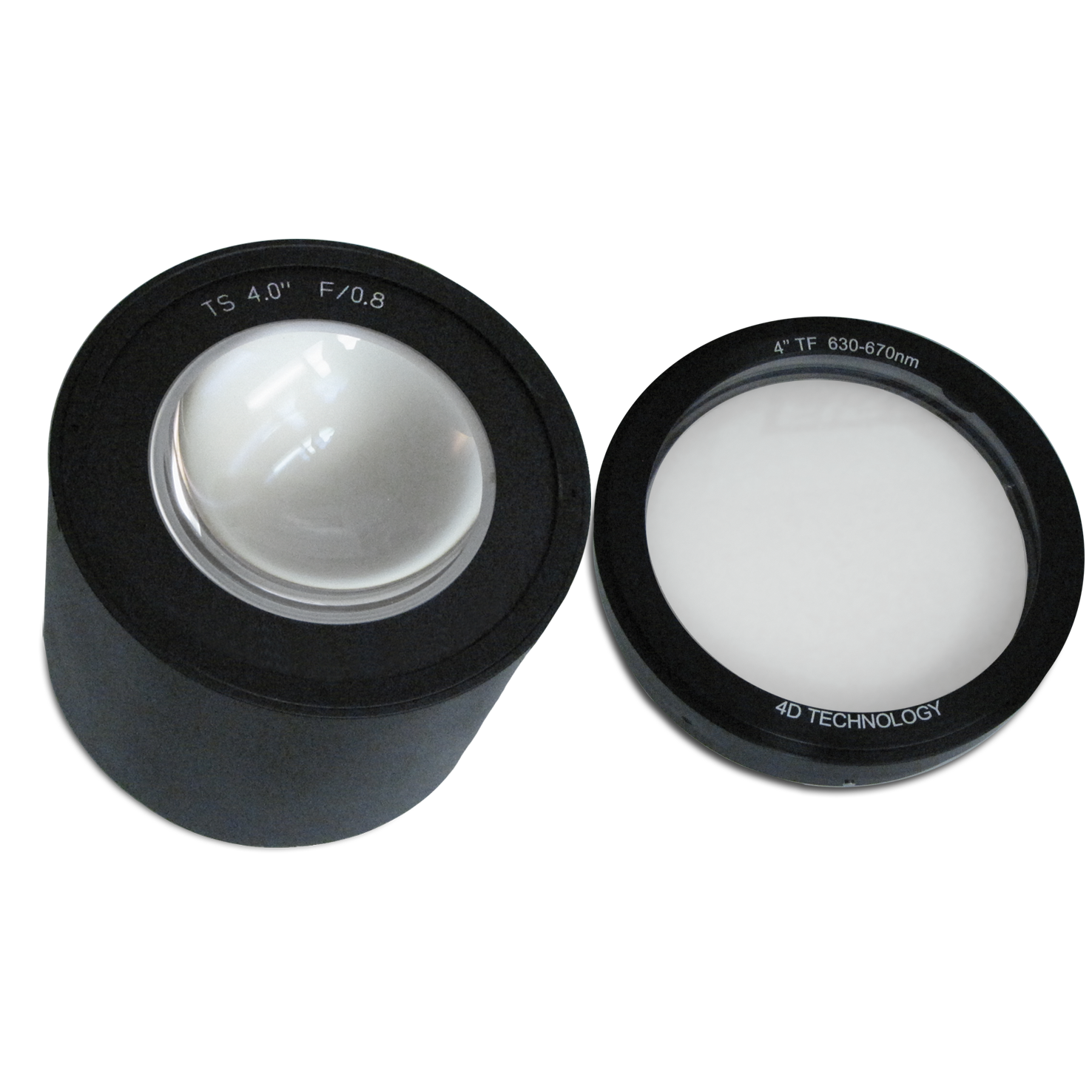

Transmission and Return Flats & Spheres

4D offers a range of bayonet mount, 4- and 6-inch optics to complete your test setup. Choose from λ/10 or λ/20 quality transmission flats and return flats, or λ/10, λ/15 or λ/20 transmission spheres and reference spheres, from F/0.65 through F/12.5. Various reflectivities and attenuation coatings are offered. Larger optics up to 18 inches are also available.

What to select for your measurement

Configuration Guide

Flats

2-axis base or 5-axis base.

Bayonet Mount or 3-Jaw Mount.

Optional Rotation Adapter for absolute flat testing.

Optional Pellicle to improve contrast with high reflectors.



Prisms

2-axis base or 5-axis base.

Shelf Mount.

Transmission Testing

Test Mount:

2-axis base.

Shelf Mount.

Return Mount:

2-axis base.

Bayonet or 3-Jaw Mount.

Optional Table Guide.

Lens Testing

Part diameter is smaller than interferometer aperture but there is still sufficient data at full zoom.

Test Mount:

2-axis base.

Bayonet or 3-Jaw Mount.

Return Mount:

5-axis base.

Bayonet or 3-Jaw Mount.

Optional Table Guide

Lens Testing Method 2

Part diameter is larger than the interferometer aperture or is so small that there is little data at full zoom.



Test Mount:

5-axis base.

Bayonet or 3-Jaw Mount.

Optional Table Guide for positioning along the optical axis.

Return Mount:

2-axis base.

Bayonet or 3-Jaw Mount.

Spheres

5-axis base.

Bayonet or 3-Jaw Mount.

Optional Rotation Adapter for absolute sphere testing.

Optional Table Guide for positioning along the optical axis.

Optional Pellicle to improve contrast with high reflectors.

Corner Cubes

2-axis base or 5-axis base.

3-Jaw Mount.

Afocal System

Test Mount:

2-axis base.

3-Jaw Mount.

Return Mount:

2-axis base.

Bayonet or 3-Jaw Mount

Optional Table Guide.

Finite Conjugate System

Test Mount:

5-axis base.

Bayonet or 3-Jaw Mount.

Return Mount:

5-axis base.

Bayonet Mount or 3-Jaw Mount.

Optional Table Guide.

Other Optics

2-axis base or 5-axis base.

Adapter Plate.

Optional Table Guide for positioning along the optical axis.

Added Technical Resources

h

Setting the Wedge Factor Tech Note

The Wedge Factor scales results to account for the geometry of an optical test setup. This tech note explains how to set the parameter for measuring wavefront error and surface height in common configurations.
