Highest value dynamic laser interferometer

The vibration-immune, easy to use PhaseCam 4030.

A compact, lightweight, dynamic laser interferometer with simple, manual controls and 4MP sensor, for measurement of optics and optical systems.

PhaseCam 4030 Description

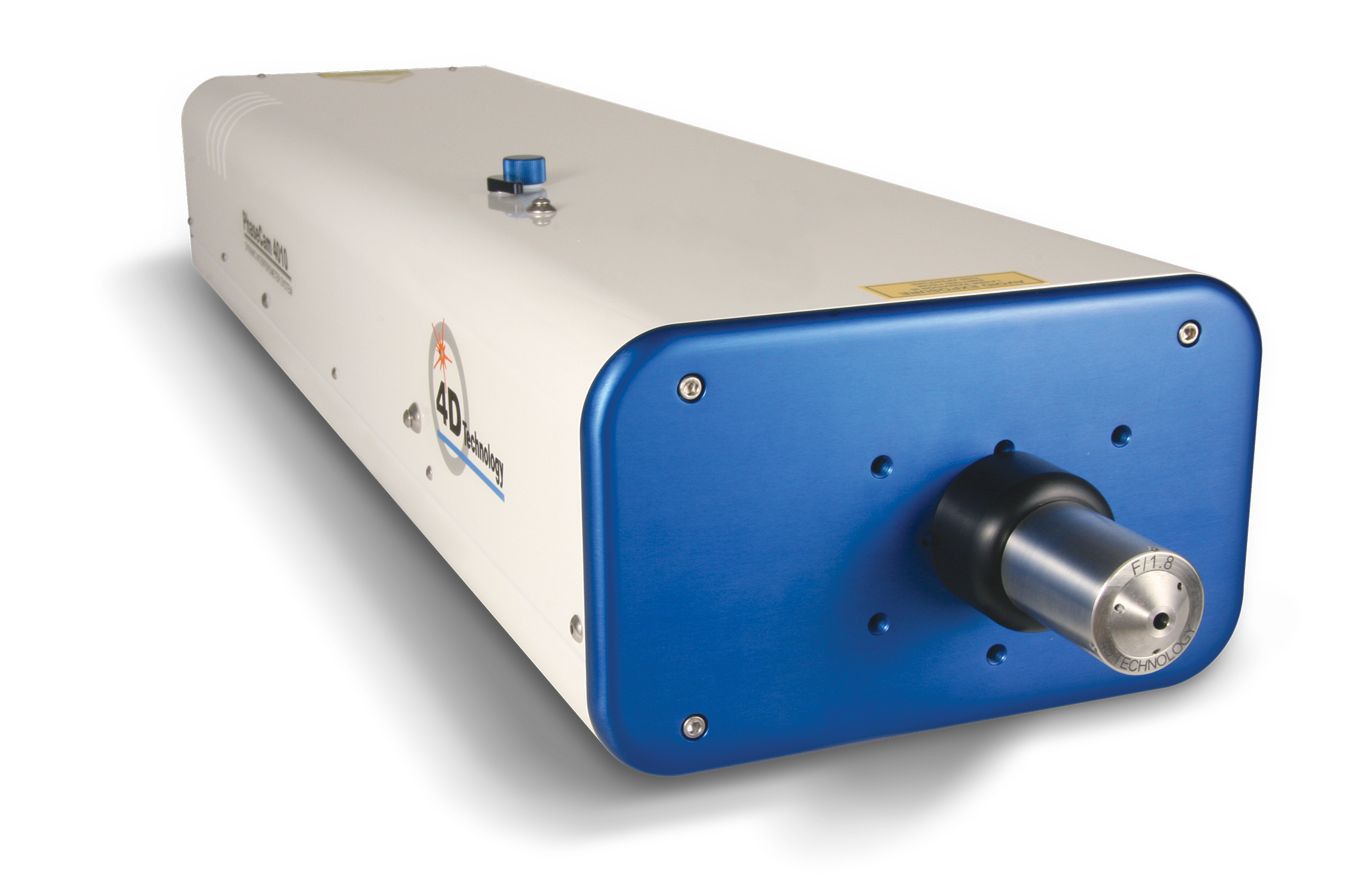

The PhaseCam® 4030 is a compact, lightweight dynamic laser interferometer with simple, manual controls for measurement of optics and optical systems. Building on the capabilities of the industry-standard PhaseCam 4020, the 4030 features a new 4MP  sensor and 4Sight Focus analysis software for incredible value and measurement power.

The PhaseCam 4030 incorporates patented Dynamic Interferometry® technology, making wavefront measurements over 5000 times faster than a temporal phase shifting interferometer. With such short acquisition time the PhaseCam is immune to vibration and can be used under almost any conditions—without vibration isolation or turbulence control. Use the PhaseCam throughout the production floor, in clean rooms and in environmental test chambers, without vibration isolation.

The new PhaseCam 4030 is ideal for measuring large, focal optics and optical systems, such as concave telescope mirrors and lens systems. It is equally well suited for testing small aperture afocal components such as flat mirrors and collimators. It can even measure moving parts such as deformable or scanning mirrors, spinning disks, or vibrating membranes.

Vibration insensitive

30 microsecond data acquisition time

Highest value

Excellent performance and analysis in an affordable package

Compact and lightweight

Designed with performance and remote measurement in mind. Small, lightweight, easy to mount and reposition quickly.

Data analysis and visualization

Industry-leading 4Sight Focus software and computer included

What to expect

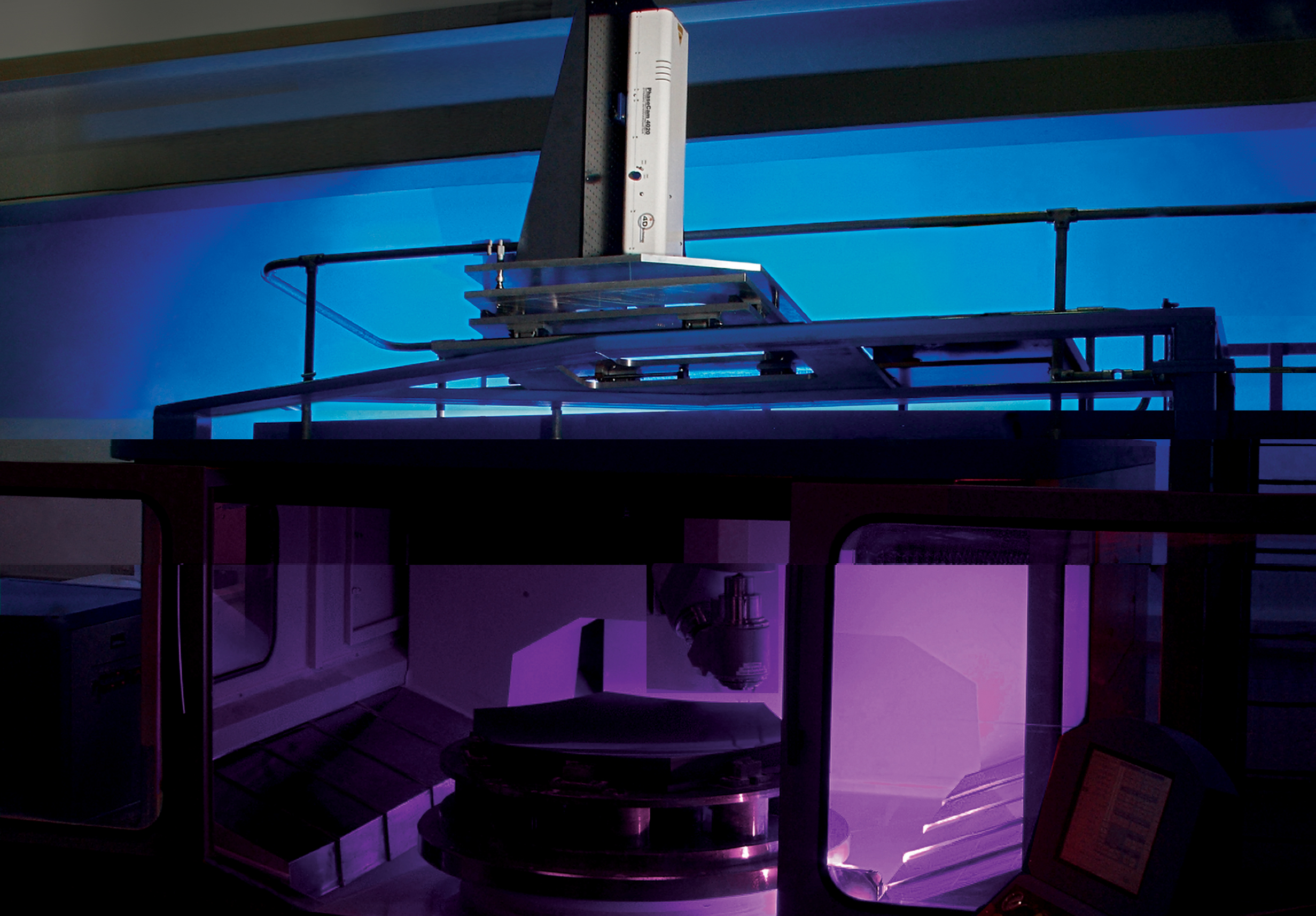

The PhaseCam 4030 is a fully-manual, easy to use interferometer offering the best value for dynamic measurement of surface shape and wavefront transmission.

It’s ideal for general use throughout the optical shop, including long optical-path measurement of large focal systems, concave telescopes mirrors, lens systems and adaptive optics. It’s also great for testing small aperture afocal components such as flat mirrors and collimators.

  • Quality verification of optical components
  • Vacuum and environmental chamber tests
  • Production floor quality control

4D supplies a turnkey interferometric system:

  1. Interferometer
  2. Advanced software for taking measurements and analyzing the results
  3. Complete computer system
  4. Connecting cables and power supplies.

Accessories include:

  • Optical mounts
  • Reference optics
  • Diverging lenses for varying the beam shape

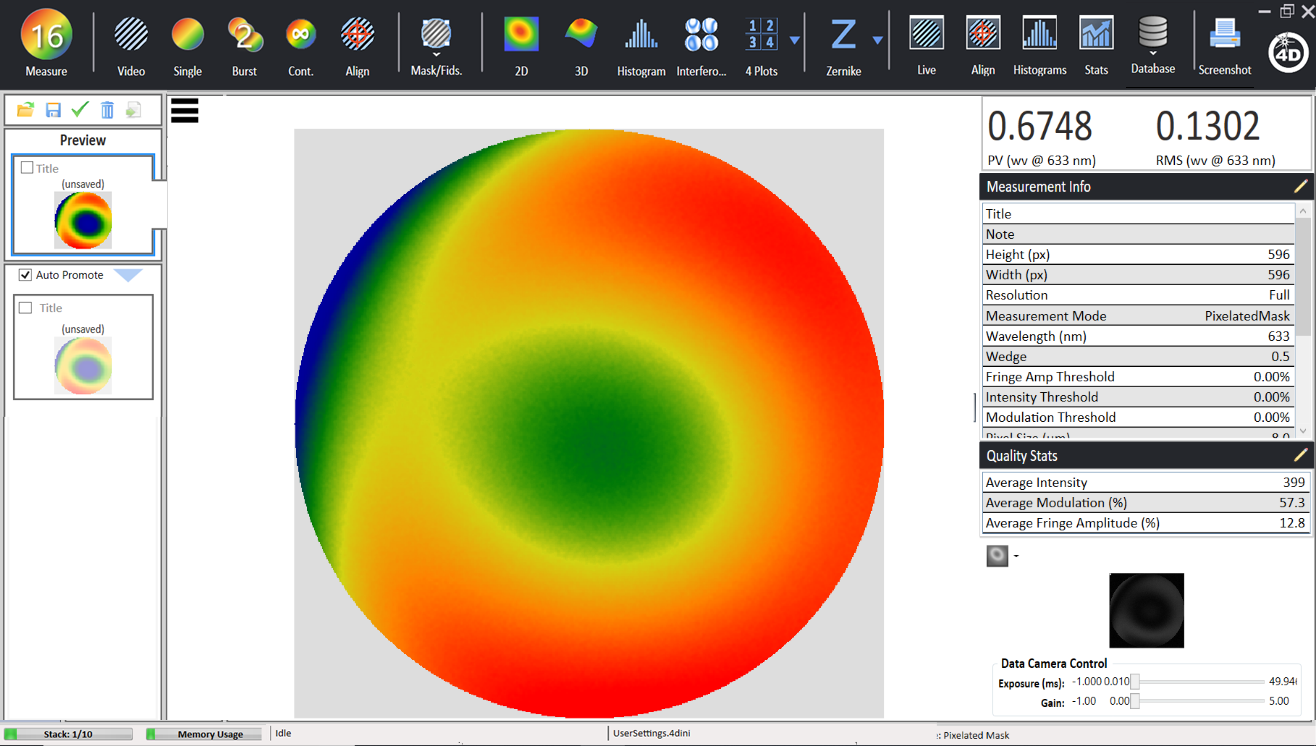

4Sight Focus Data Acquisition and Analysis Software4Sight Focus wavefront acquisition and analysis software utilizes a user-friendly interface with unmatched simplicity, analysis features and graphical displays.

4Sight’s 64-bit acquisition engine produces rapid analysis and display of single, averaged or burst measurements. Continuous data acquisition and real-time Zernike bar plots provide real-time visual feedback for simplifying optical system or beam train alignment.

The user-friendly interface makes data comparison, manipulation, masking, reference subtraction, filtering and terms removal simple to perform. Zernike, Seidel, geometric and diffraction analyses are standard. Comprehensive data sharing capabilities let you read, write, and save most file types, including Zemax, MatLab, Vision, MetroPro, HDF5 and CodeV.

data

analysis software

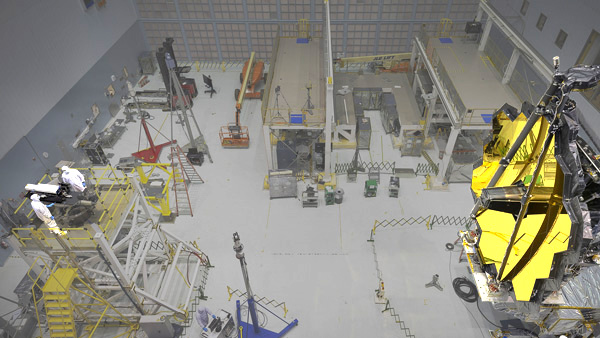

PhaseCam and telescope optics

Check out our application page on telescope optics.
